Intel 12th Gen Core Alder Lake Performance Review: Chipzilla Is Back
Intel Core i9-12900K & i5-12600K: Graphics, Gaming, And Power Data
For our next series of tests, we moved on to some graphics and game-related metrics with 3DMark, specifically the physics benchmark that's part of the Time Spy test, along with a handful of actual games. For the 3DMark Physics test, we simply create a custom 3DMark run consisting solely of the physics test, which is multi-threaded and CPU dependent, and report the results...
UL 3DMark CPU Physics Benchmark
The multi-threaded 3DMark game physics tests ran particularly well on the Alder Lake-based 12th Gen Core processors. The Core i9-12900K and Core i5-12600K finished in first and second place, with the Core i9 significantly outpacing every other CPU we tested.
High-Resolution Gaming & Graphics BenchmarksWe also ran some mid and high-resolution game and graphics tests on our test rigs with 3DMark, F1 2021, and Metro Exodus. We used 3DMark's default Time Spy preset, and both of the games were run in two different configurations -- either 1080p with Medium/High details, or 4K with High/Extreme details. The lower resolution tests are more CPU bound, while the higher resolution tests are more GPU bound.
Although the individual game tests have all of the fastest platforms finishing right on top of each other, the 12th Gen Core processors' strong Physics results push them to the head of the pack here in terms of their overall 3DMark scores. Once again, we see the HEDT platforms falling down in Windows 11.
The medium-quality, high-framerate 1080p in-game tests have the Core i9-1290K finishing on top, backing up Intel's claim that this processor is the top-dog for gamers. The Core i5-12600K also performs well, finishing on-par with or just slightly besting the Core i9-11900K.
When the in-game details and resolution are cranked up, choking the GPU rather than the CPU, the playing field levels off considerably. Though the 12th Gen Core processors continue to perform well in these tests, the deltas separating all of the top platforms are effectively nil and would be imperceptible in real-world use.
12th Gen Integrated Graphics PerformanceWe also ran a couple of tests on the Core i9-12900K using its integrated graphics engine and compared it's performance to a handful of numbers we had available using older Intel solutions and an array of Radeon IGPs.
The Intel UHD Graphics in new 12th Gen Core desktop processors is clearly a significant step up over the Intel UHD 750 in 11th Gen Core processors, but even with the increased bandwidth afforded by the platform's DDR5 memory, it can't quite keep pace with AMD's Radeon iGPUs.
A Closer Look At 12th Gen Core Frequency, Power And Thermal Characteristics
This is the point where we'd usually do a bit of overclocking to see what kind of additional performance we could wring from a new platform. Although these chips are unlocked and Intel has incorporated a handful of new overclocking-related features into them, we hit a wall with our particular setup and the Core i9-12900K. We did not have any instability to speak of, but when we made any tweaks the processor's multipliers, under sustained multi-threaded workloads (like Cinebench, for example), core temps would very quickly shoot up to 100°C and the chip would throttle back down to what was effectively its stock performance level.
We are going to experiment further with our test-bed and will update this section with more overclocking related info when we can. We do, however, also want to share some additional information regarding frequencies and temperatures with the processors running in their stock configurations.

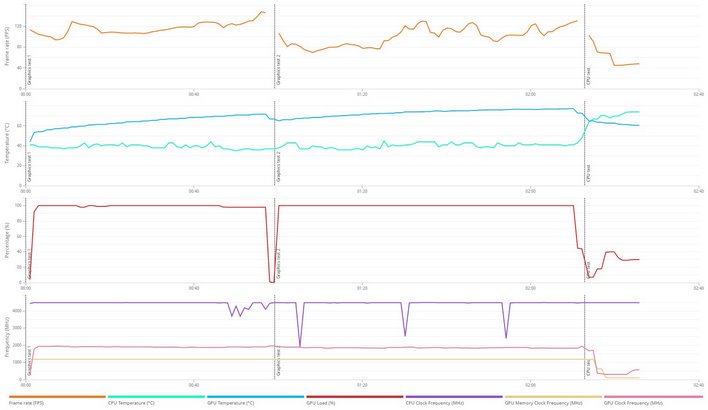

The two plots above show both the Core i5-12600K's and Core i9-12900K's frequencies and temperatures through an entire 3DMark Time Spy run. If you click to enlarge the images, you'll see that both processors maintained high frequencies for the duration of the run with mild temperatures in the 40°C - 50°C range using a standard off-the-shelf Corsair AIO liquid cooler.

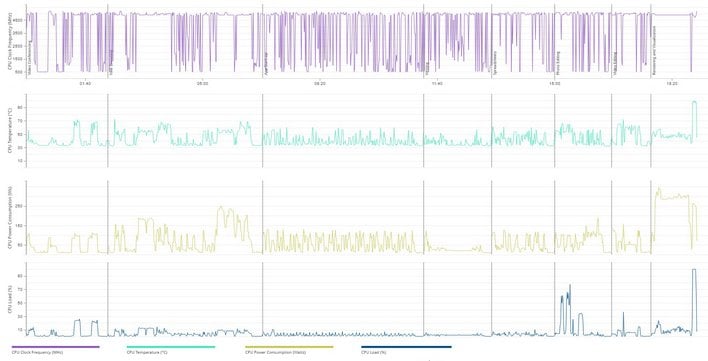

We have a similar plot for the Core i9-12900K when churning through the various tests in the PCMark 10 suite. Here, for the vast majority of the test, the Core i9-12900K behaved similarly to 3DMark despite the varied productivity and content creation workloads. At the very end, however, during the Rendering & Visualization test, power consumption and temperatures spike upwards, and the chip exceeds the 90°C mark.

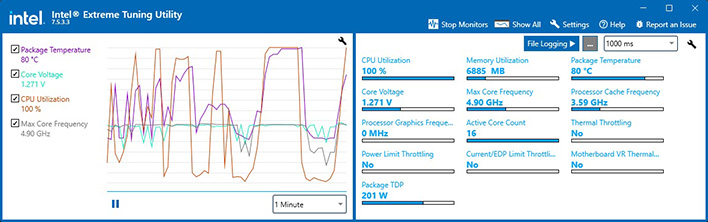

The data gathered in PCMark 10 jibes with the hardware monitoring tools built into Intel's XTU utility as well. In its stock configuration, the Core i9-12900K idled in the mid-30°C range (give or take a coupe of degrees across the various cores) and peaked in the upper-90s when running Cinebench.
Total System Power Consumption
Throughout all of our benchmarking and testing, we also monitored how much power our Intel 12th Gen-based rig was consuming with a power meter, versus the other systems we used for comparison.
Our goal was to give you an idea as to how much power each configuration used while idling at the Windows desktop and while under a heavy CPU workloads across one and all cores. Keep in mind, this is total system power consumption being measured at the outlet and not the the individual power being drawn by the CPUs alone.
