AMD Radeon Pro W5500 Review: Navi Pro Graphics For Less

Article Index

AMD Radeon Pro W5500: SPECviewperf, VR, And Gaming Tests

Next up we have some numbers from SPECviewperf v13, the latest version of the venerable SPEC benchmark as of this article's publication. The entire test suite has been overhauled for this version, and it includes a new extensible architecture that's designed to make SVP easier to customize and adapt for a variety of workloads. The test also includes new medical and energy datasets, updated classic viewsets, and includes a test for Autodesk Showcase.

SPECviewperf v13
Workstation Graphics Performance

SPECviewperf includes a variety of tests, which produce significantly different framerates, so we've sorted them into three groups to make the results a bit easier to read. Please note the legends at the bottom of each chart, which designate the application or viewset used...

specviewperf1 radeon pro w5500

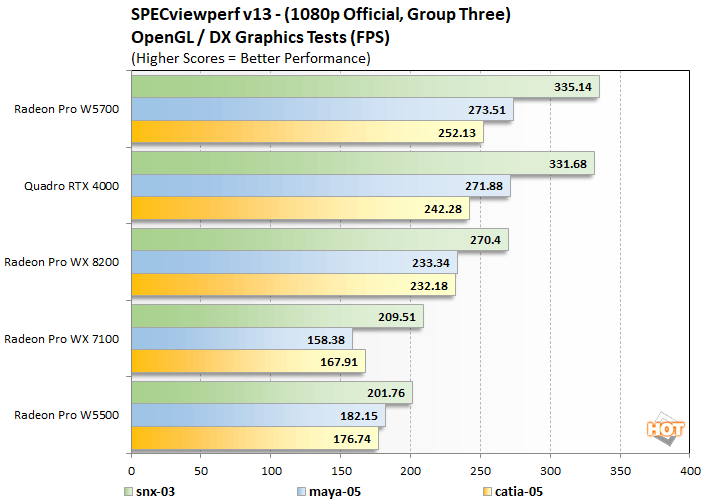

specviewperf2 radeon pro w5500


specviewperf3 radeon pro w5500

The new Radeon Pro W5500 goes 1/2 Borg and outperforms the Polaris-based Radeon Pro WX 7100 in 7 of 9 SPECviewperf tests. Stepping up to the higher-end cards offers a significant boost in performance, but for a mainstream offering the Radeon Pro W5500 is a clear step-up over the WX-series for the majority of workloads here.

VR And Gaming Graphics Benchmarks
Testing VR And Game Readiness

Futuremark’s VRMark is designed to test a PC’s readiness for the HTC Vive and Oculus Rift virtual reality headsets. The benchmark does not, however, require that one of the headsets is attached to the PC to run and it uses an in-house graphics engine and content to ensure comparable results between different platforms. We ran the "Blue Room" VRMark test at defaults settings here, which is currently the most taxing test offered by the tool.

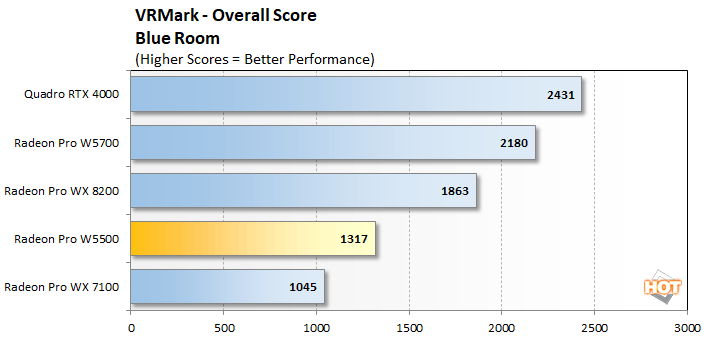

vrmark1 radeon pro w5500

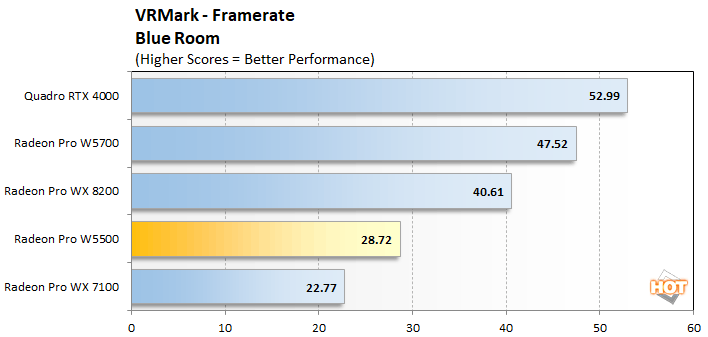

vrmark2 radeon pro w5500

Once again we see the Radeon Pro W550 pulling ahead of the Radeon Pro WX 7100. The Navi-based Radeon Pro W5500 is about 20% faster than the Polaris-based (and higher-priced -- at least currently) WX 7100.

Superposition is powered by the UNIGINE 2 Engine. It offers an array of benchmark modes, targeting gaming workloads as well as VR, with both DirectX and OpenGL code paths. Unigine Superposition uses the developer’s unique SSRTGI (Screen-Space Ray-Traced Global Illumination) dynamic lighting technology, along with high quality textures and models, to produce some stunning visuals. We ran Superposition in its "VR Future" benchmark mode to compare the performance of all of the graphics cards featured here...

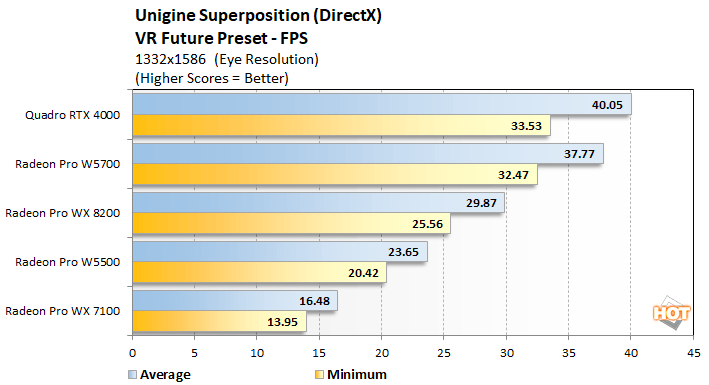

unigine 1 radeon pro w5500

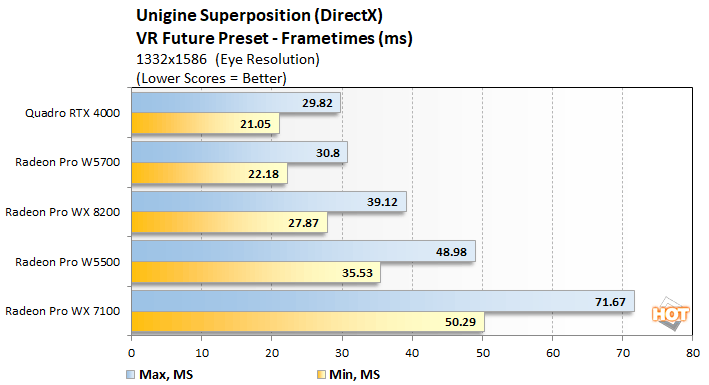

unigine 2 radeon pro w5500

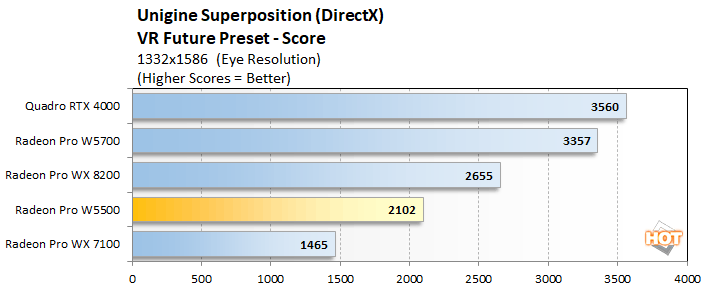

unigine 3 radeon pro w5500

Superposition's VR benchmark shows a similar performance trend, with the Radeon Pro W5500 once again pulling head of the WX 7100, but this time by a much wider margin.

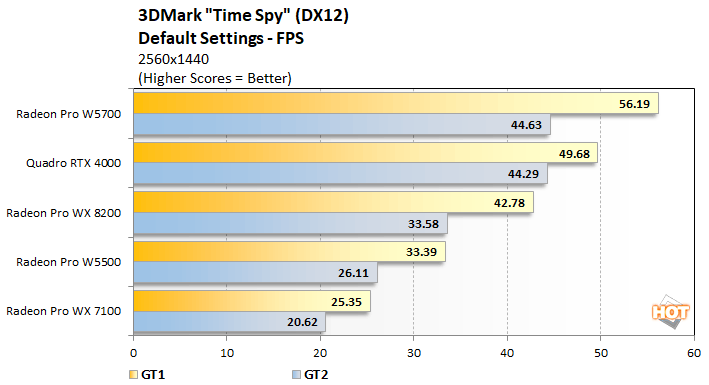

timespy 1 radeon pro w5500

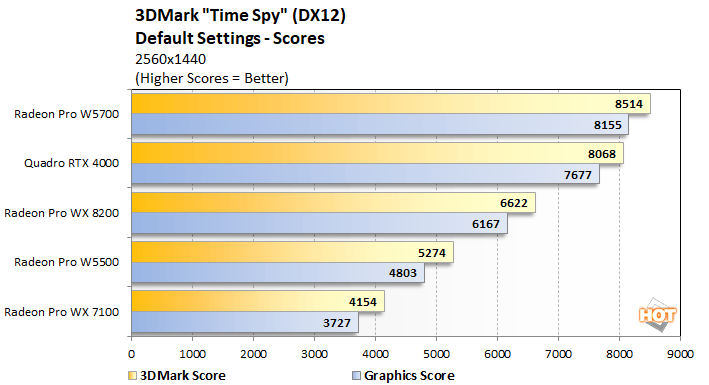

timespy 2 radeon pro w5500

Although the Radeon Pro W5500 is not a gaming card, its handles 3DMark's DX12 Time Spy benchmark relatively well and outruns the Radeon Pro WX 7100 by about 27% overall.
