AMD Radeon RX 5600 XT - FC 5, Final Fantasy, Overclocking, Acoustics And Power

Next up, we’ve got some benchmark scores from FarCry 5, the latest installment in the storied franchise. Like its predecessors, FarCry 5 is a fast-action shooter set in an open world environment with lush visuals and high graphics fidelity. The game takes place in a fictional county in Montana, where a cult has taken over control of the area. We tested all of the graphics cards here at multiple resolutions using Ultra Quality settings to see how they handled this recently-released AAA title.

Far Cry 5
The Dunia Engine Lives On

farcry 5
FarCry 5

farcry 1


farcry 2

The Sapphire Pulse Radeon RX 5600 XT performed well in our FarCry 5 tests. When using the Performance BIOS, the card sits near the top of the charts at both resolutions, trialing only the higher-end Radeon RX 5700. When using the Silent BIOS, the Sapphire Pulse Radeon RX 5600 XT's performance dips down only slightly, but is still high enough to outrun the GeForce RTX 2060.

Final Fantasy XV
Freshly Updated With DLSS Support

final fantasy xv
Final Fantasy XV

final fantasy

The Final Fantasy XV benchmark favors NVIDIA's GPU architecture and shows the GeForce RTX 2060 leading the pack. The Sapphire Pulse Radeon RX 5600 XT pulls ahead of Vega 56 and the Polaris-based Radeon RX 590 here, but just misses the mark set by the GeForce GTX 1660 Super.

Overclocking The Sapphire Pulse Radeon RX 5600 XT

We also spent some time overclocking the Radeon RX 5600 XT using the performance and tuning tools built into AMD's Adrenaline Edition 2020 drivers. Like previous-gen Radeons, when the Navi-based GPU at the heart of this card is boosting, frequencies and voltages scale upwards (power and temperature permitting) based on the GPU's workload and thermal threshold at the time. With the tuning options built into AMD's driver suite though, users have the ability to manually alter frequencies, voltages, fan speeds, and the max power target, to fine tune performance, power, and acoustics.

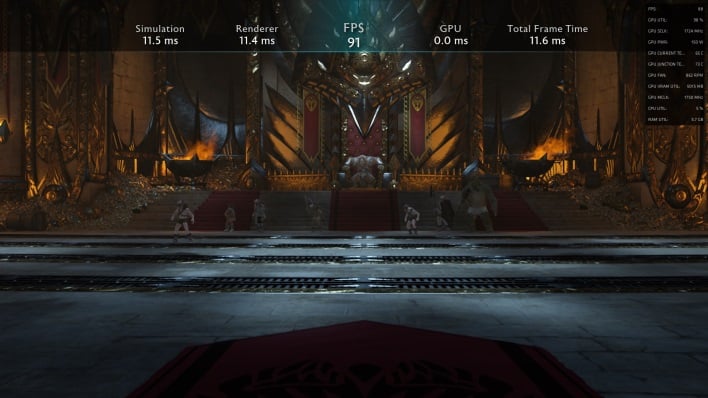

default temps clocks
Radeon RX 5600 XT Default Settings Hardware Health Data Overlay

With previous-generation Radeons, though the GPUs had multiple sensors built-in, a single sensor had been used to determine the GPU temperature and data from that lone sensor was used to control the card's thermal profile. With newer GPUs, AMD has incorporated a network of multiple thermal sensors at strategic locations across the die. Data gathered from this array of sensors is used to determine what AMD is calling the "Junction Temperature", and it's the Junction Temperature that is used to tune the card's power and thermal profiles (the Junction Temperature is effectively the hottest part of the GPU die at any given time). AMD claims the increased resolution and accuracy from the additional thermal sensors allows it to increase overall sustained performance, because throttling based on the Junction Temperature is more reliable and effective.

5600xt default metrics
Sapphire Pulse Radeon RX 5600 XT Default Setting Hardware Health Data

The tuning options built into AMD's Radeon Software suite offer manual tuning, along with automatic under-volting and automatic GPU and Memory overclocking. Ideally, finding the lowest stable voltage and highest stable memory and GPU clocks, while also increasing the max power target and keeping temperatures low, will yield the best overall overclocking results with a Navi-based GPU like the one on the Radeon RX 5600 XT.

5600xt oc metrics
Sapphire Pulse Radeon RX 5600 XT Overclocked

At its stock settings, we saw the GPU clock typically hovering around the 1,700MHz mark while gaming (give or take, obviously) with the Sapphire Pulse Radeon RX 5600 XT we used for testing. We found that we could easily max-out the memory clock on our card to 1,860MHz (14.8Gbps), and with a mild under-volt to 981mV, a 1,800MHz max boost clock was perfectly stable.  For good measure, we also slightly increased the maximum fan speed to 50% at the upper end of the curve, to ensure temperatures weren't an issue.  In the end, we saw slightly higher, real-world game clocks commonly in the 1,680MHz - 1,733MHz, though it occasionally spiked higher and temperatures remained low, as you can see in the screen-shot above.

oc 5600xt 1


oc 5600xt 2

While we had the card overclocked, we saw only a moderate increase in performance in the 3DMark Time Spy benchmark, but Shadow Of The Tomb Raider showed a full 3 FPS increase, which brought the Sapphire Pulse Radeon RX 5600 XT closer to catching the Radeon RX 5700 and extended its lead over the GeForce RTX 2060 in this game.

Total System Power Consumption
Tested at the Outlet
Before bringing this article to a close, we'd like to cover a couple of final data points regarding power consumption and acoustics. Throughout all of our benchmarking and testing, we monitored noise output and tracked how much power our test system was consuming using a power meter.

Our goal was to give you an idea as to how much power each configuration used while idle and also while under a heavy gaming workload. Please keep in mind that we were testing total system power consumption at the outlet here, not the power being drawn by the graphics cards alone. It's a relative measurement that gives you a decent view of how much additional power draw a graphics card is placing on a system while gaming.

power 5600 xt

The Sapphire Pulse Radeon RX 5600 XT used just a touch less power than the Radeon RX 5700 in our tests, but more than any flavor of GeForce GTX 1660, under both idle and load conditions. The GeForce RTX 2060, however, consumed somewhat more power than the RX 5600 XT when under load.

Radeon RX 5600 XT Thermals And Acoustics

We should also mention that GPU temperatures are not a concern at all with the Sapphire Pulse Radeon RX 5600 XT. At idle, the GPU temps hovered in the high 40ºC / low 50ºC range. And under sustained load, even while overclocked with the stock fan profile, GPU temperatures only jumped up into the mid-70s, according to the Junction Temperature reading in AMD driver suite. Remember, the junction temperature is always higher than the generic GPU temperature under load, but in the case of the Sapphire Pulse Radeon RX 5600 XT, it still remains relatively low. For example, after hours of benchmarking, while looping Tomb Raider, the junction temperature rarely broke the 74ºC mark.

sapphire 5600xt sound level

Noise output wasn't an issue with the Sapphire Pulse Radeon RX 5600 XT in its default configurations either. The card was quiet throughout our testing, regardless of the workload. The fans on the card do spin up to barely audible levels when the GPU is warmed-up and under sustained load for a while, but they are very quiet overall and while the card is idling the fans stop spinning altogether. Using the Performance mode BIOS our test system output only 46.7dBA with the sensor only inches away from the card in an open case. While overclocked, with the maximum fan speed manually ramped up to 50%, the noise level crept up to just over 50dBA, which was clearly more audible, but that can easily be brought down considering how low the 5600 XT's temperatures remained, even while overclocked. In short, the Sapphire Pulse Radeon RX 5600 XT is quiet during real-world use.
