Solidigm P41 Plus SSD Review: Strong PCIe 4 Storage Value
Solidigm P41 Plus: Affordable, High-Capacity NVMe PC Storage
|Solidigm P41 Plus: Starting At $82.99
The Solidigm P41 Plus is an affordable, DRAM-less PCIe 4 Solid State Drive, tuned for low queue depths and mainstream computing workloads. It offers good throughput at very attractive price points.
Solidigm has seemingly not missed a beat since the company was recently spun out of Intel. Now under the ownership of SK hynix, Solidigm has continued producing high quality and high performance solid state drives for a variety of markets, spanning from the consumer space to the data center. These products do not simply appear overnight, though, so some of Intel's DNA is still present in products like the P41 Plus SSD we have up for review today.
Case in point, the P41 Plus is built using 144-layer 3D QLC NAND technology developed at Intel, but for all intents and purposes should be treated as homegrown from Solidigm. The P41 Plus is like a DRAM-less version of its predecessor, the Intel SSD 670p, using the same NAND paired with a newer controller. Given this pedigree, we can expect the drive to be a strong performer in its competitive range while retaining respectable endurance and reliability. Let's dig into the particulars and unpack this new PCIe 4.0 NVMe SSD for a deep-dive performance evaluation.
Solidigm P41 Plus Specifications And Features
Solidigm P44 Pro (review coming soon) and Intel 670p. Instead, it leverages a pseudo SLC (pSLC) cache. SLC NAND is not as fast as DRAM, but still out-performs QLC by big margin, especially with respect to write operations. It is less dense and more expensive to produce than QLC though, so pSLC caches are typically kept quite small.
With all that out of the way, we are ready to see how these drives perform in practice against the competition.
Solidigm P41 Plus SSD Benchmarks
Under each test condition, the SSDs showcased here were installed as secondary volumes in our testbed, with a separate drive used for the OS and benchmark installations. Our testbed's motherboard was updated with the latest BIOS available at the time of publication and Windows 11 was fully updated. Windows firewall, automatic updates, and screen savers were all disabled before testing and Focus Assist was enabled to prevent any interruptions.
In all test runs, we rebooted the system, ensured all temp and prefetch data was purged, and waited several minutes for drive activity to settle and for the system to reach an idle state before invoking a test. All of the drives here have also been updated to their latest firmware as of press time. Where applicable, we would also typically use any proprietary NVMe drivers available from a given manufacturer, but all of the drives featured here used the Microsoft driver included with Windows 11.
HotHardware's Test System:
AMD Ryzen 9 7950X
Asus ROG CrossHair X670E Hero
GeForce RTX 3080
32GB G.SKILL DDR5-5200
ADATA XPG GAMMIX S70 Blade (OS Drive)
ADATA XPG GAMMIX S50 Lite (1TB)
Kioxia XG8 (2TB)
Samsung 980 Pro (2TB)
Solidigm P41 Plus (2TB)
Solidigm P41 Plus (1TB)
WD Black SN770 (1TB)
Windows 11 Pro x64
HD Tune v5.75
CrystalDiskMark v8.0.4 x64
Final Fantasy XIV: Endwalker
PCMark 10 Quick Storage Bench
3DMark Storage Tests
IOMeter BenchmarksIOMeter is a well-respected industry standard benchmark. However, despite our results with IOMeter scaling as expected, it is debatable as to whether or not certain access patterns actually provide a valid example of real-world performance. The access patterns we tested may not reflect your particular workloads, for example. That said, we do think IOMeter is a reliable gauge for relative throughput, latency, and bandwidth with a given storage solution. In addition, there are certain highly-strenuous workloads you can place on a drive with IOMeter, that you can't with most other storage benchmark tools.

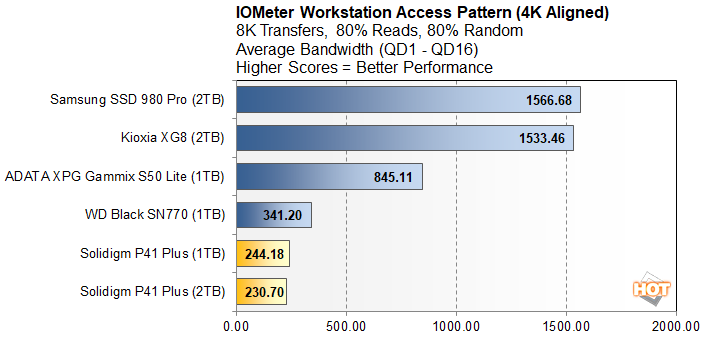

In the following tables, we're showing two sets of access patterns; a custom Workstation pattern, with an 8K transfer size, consisting of 80% reads (20% writes) and 80% random (20% sequential) access and a 4K access pattern with a 4K transfer size, comprised of 67% reads (33% writes) and 100% random access. Queue depths from 1 to 16 were tested...
At 4K and 8K transfers, the Solidigm P41 Plus drives perform very similarly, though both trail the competition by a pretty wide margin. Much of this is due to the lack of a DRAM cache, but the WD Black SN770 is similarly DRAM-less and puts up a slightly stronger showing except at the lowest queue depth.
Our latency results show the correlating higher latency toll on the P41 Plus drives. The 1TB variant is marginally better than the 2TB model at high queue depths, but latency is arguably less impactful as queue depth increases. With a queue depth of 1, these drive are not significantly different from the rest of the field, which bodes well for system responsiveness.
SiSoft SANDRA 2021
The ADATA XPG Gammix S50 Lite was stronger performer in IOMeter's 4K and 8K transfers, but finds itself below the Solidigm P41 Plus in sequentials here for all but average writes. We can see the 2TB P41 Plus' stronger write performance here, while read speeds are nearly indistinguishable from the 1TB model.
ATTO Disk Benchmark
ATTO is another "quick and dirty" type of disk benchmark that measures transfer speeds across a specific volume length. It measures raw transfer rates for both reads and writes and graphs them out in an easily interpreted chart. We chose .5KB through 64MB transfer sizes and a queue depth of 6 over a total max volume length of 256MB. ATTO's workloads are sequential in nature and measure raw bandwidth, rather than I/O response time, access latency, etc.
With ATTO, we see the Solidigm P41 Plus hit its stride at around 32KB writes and 128KB reads. Overall performance is again similar to the ADATA XPG Gammix S50 Lite, with the three results all falling into the same midrange performance ballpark.
IO performance is virtually identical for both reads and writes between the P41 Plus models. Write speeds lead the pack at tiny transfer sizes, but ultimately lands at the bottom of the curve upon reaching 32KB. Read speeds fall more in the middle, but we will note that these drives have some of the most consistently smooth performance scaling across the range, with no real outliers like we see with the ADATA and WD drives in particular.
AS SSD Compression Benchmark
Next up we ran the Compression Benchmark built-into AS SSD, an SSD specific benchmark being developed by Alex Intelligent Software. This test is interesting because it uses a mix of compressible and non-compressible data and outputs both Read and Write throughput of the drive. We only graphed a small fraction of the data (1% compressible, 50% compressible, and 100% compressible), but the trend is representative of the benchmark’s complete results.
