SK Hynix And SanDisk Unleash High-Bandwidth Flash To Fix AI Bottlenecks
See, as parameter counts for frontier neural networks expand beyond hundreds of billions into the trillions, raw High Bandwidth Memory (HBM) capacity on accelerator packages has become a critical financial and physical bottleneck. While HBM supplies the extreme multi-terabyte-per-second throughput necessary to feed modern tensor processing units, its extremely high cost and physical interposer footprint strictly limit total capacity we can actually connect to a GPU. High-Bandwidth Flash resolves this economic mismatch by inserting an intermediate, high-density memory tier directly between power-dense HBM and standard PCIe-attached solid-state drives.

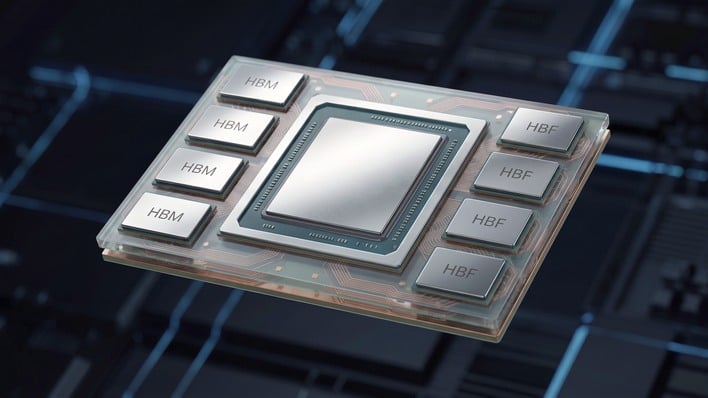

As described, HBF uses high-density 3D and "4D" NAND flash technology packed into dense eight-high or sixteen-high stacked die configurations; this in turn provides up to 512GB of near-compute capacity per stack. By designing this NAND array as near-memory rather than traditional block storage, AI accelerators can offload massive parameter sets that exceed HBM limits without suffering the severe latency and throughput penalties of the PCIe bus.
This paradigm is ideal for AI inference workloads, particularly those employing Mixture of Experts (MoE) topologies or per-layer embedding offloading. In MoE architectures, only a fraction of total network parameters are active for any given token. This means vast reservoirs of conditionally routed expert weights are just sitting resident in fast memory. Furthermore, because AI model serving is overwhelmingly a read-heavy operation where static model weights are retrieved repeatedly during matrix multiplication, the fundamental write endurance constraints of NAND flash are rendered virtually irrelevant over the operational lifespan of the accelerator.
To achieve near-RAM-class latencies and massive interconnect throughput, the HBF specification mandates Universal Chiplet Interconnect Express (UCIe) as its physical and protocol-level host interface. While young, UCIe has rapidly established itself as the favorite die-to-die interconnect standard. It's governed by a broad consortium that includes leading chiplet architects such as AMD, Intel, TSMC, and Arm. Currently, these companies use proprietary interconnects between chiplets, which limits interoperability. By moving to a unified standard, it becomes plausible, even possible, to mix and match chiplets across designs.
So, by utilizing UCIe chiplet packaging rather than board-level traces or PCIe lanes, HBF die stacks can sit directly on the same silicon interposer or high-density organic substrate as the host GPU or custom ASIC. In terms of performance, the initial OCP technical specification outlines three scalable bandwidth tiers, designated Grade 1 through Grade 3, capable of delivering host interface bandwidth ranging from approximately 400 gigabytes per second up to an astonishing 3 terabytes per second. When integrated with cutting-edge flash architectures, like SK hynix's 375-layer V10 4D NAND, HBF promises up to two and a half times greater power efficiency compared to standard server flash.
Unfortunately for PC hardware enthusiasts wondering whether this ultra-dense memory will trickle down to desktop hardware, the short answer is "not anytime soon." The structural realities of HBF rely heavily on advanced 3D heterogeneous packaging, silicon interposers, and dedicated UCIe physical layers, all of which crank up costs to levels that only enterprise data center economics can absorb. While enthusiast GPUs could hypothetically leverage onboard NAND offloading to host colossal game asset caches, the sheer economics of HBF mean that already-absurdly expensive graphics cards would only cost even more. No, High-Bandwidth Flash is strictly an enterprise intervention engineered to expand LLM context windows and multi-agent AI systems, meaning it will remain confined to server racks and custom accelerator boards for the foreseeable future.
