Intel Details Wildcat Lake Cost Savings With 38% Smaller Compute Die Vs Panther Lake

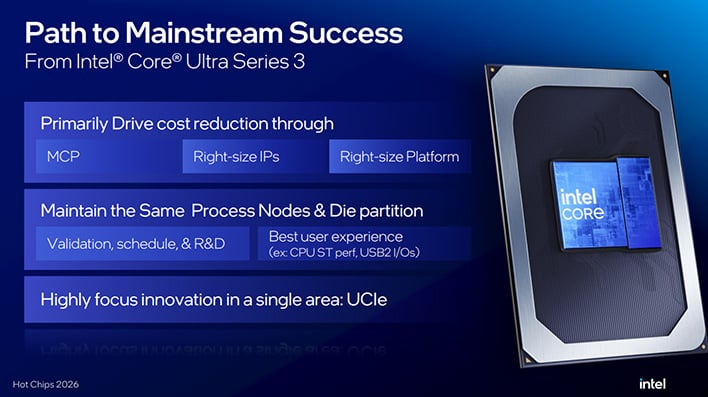

At Hot Chips 2026, Intel detailed the silicon and packaging trade-offs behind its Core Series 3 processors, otherwise known as Wildcat Lake, revealing how it reduced the compute die area by 38% compared to Panther Lake (Core Ultra Series 3). Designed for mainstream notebooks and edge deployments, Wildcat Lake pairs trimmed IP blocks with an organic multi-chip package (MCP) over Universal Chiplet Interconnect Express (UCIe) to minimize total platform cost.
Notably, Wildcat Lake is based on the same cutting-edge Intel 18A process node as Panther Lake. The difference (one of them) is that Wildcat Lake chips are "purpose-engineered for value" and target lower-cost laptop solutions for schools, small businesses, and value-conscious buyers. It also enables Windows OEMs to gain better footing in the budget segment to compete against Apple's MacBook Neo.
"Intel Core Series 3 processors, codenamed Wildcat Lake, bring right-sized AI capabilities to price-sensitive laptops and intelligent edge platforms. Built on the Intel 18A process, Wildcat Lake combines new CPU cores for high x86 single thread performance with integrated Xe3 graphics featuring XMX acceleration and an NPU delivering up to 17 TOPS for Hybrid AI," Intel says.
"Wildcat Lake also marks the first use of UCIe in an Intel processor, enabling cost-effective multi-chip package designs for mainstream AI platforms," Intel adds.
UCIe, or Universal Chiplet Interconnect Express, is an open standard that Intel co-established with AMD, Arm, and other players. Designed as a high-bandwidth, low-latency connector for computing blocks to communicate inside a chip, this is a major key to Wildcat Lake's ability to deliver high-speed, multi-die interconnectivity without forcing costly manufacturing packaging like silicon interposers. By dropping Foveros 3D stacking in favor of an organic multi-chip package (MCP), Intel used UCIe to stitch together the trimmed Compute and I/O dies while keeping total bill-of-materials (BOM) more manageable.
Bridging Silicon with UCIe

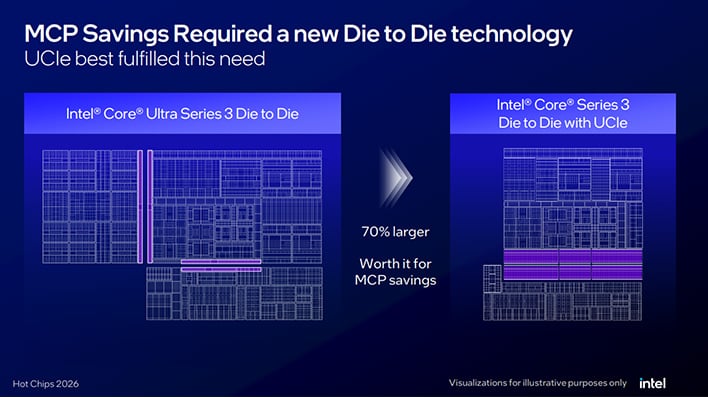

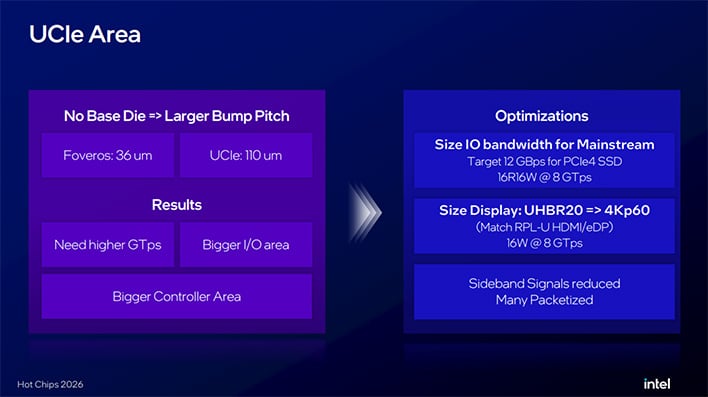

Moving to an organic substrate introduces physical constraints. In this case, a wider 110µm bump pitch compared to the 36µm pitch of Foveros. This effectively expands the required die-to-die interface area by 70%. Intel mitigated this in a few different ways:
- Fixed Link Speeds: Capping the UCIe link at 8GT/s eliminated the circuit complexity, power draw, and latency penalties associated with Forward Error Correction (FEC) and retry mechanisms.
- Simplified Power Delivery: Intel validated the link to run without needing a dedicated on-board low-dropout regulator (LDO), streamlining the power delivery network.
- Aggressive Power States: To keep idle power draw low across packetized UCIe links, Intel integrated multi-tier low-power link states paired with Quality-of-Service (QoS) display traffic scheduling to prevent display stutter.
Navigating Protocol and Power Engineering

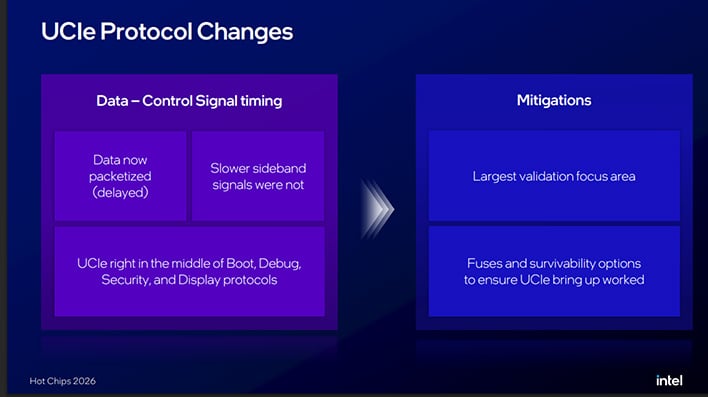

Translating UCIe interconnects to client PC workloads introduced some engineering hurdles. Packetizing data created slight delays relative to slower, unpacketized sideband signals. Because UCIe sits right in the execution path of boot, debug, security, and display protocols, timing mismatches led to validation challenges. Intel addressed these by implementing dedicated fuse settings and survivability options to guarantee reliable bring-up, as outlined above.

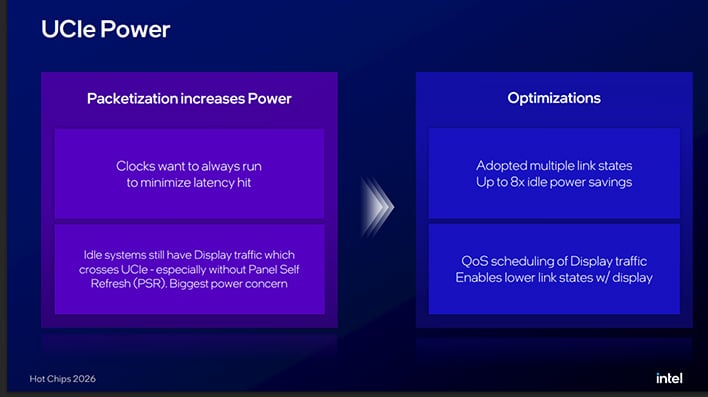

Because packetized links naturally prefer to run clocks continuously to avoid latency spikes, display traffic crossing the UCIe bridge threatened system idle battery life. Implementing QoS-aware scheduling allowed display frames to pass reliably while enabling the UCIe links to enter lower-power states during idle periods—achieving up to an 8x reduction in idle interconnect power draw.
Silicon Binning and Yield Recovery

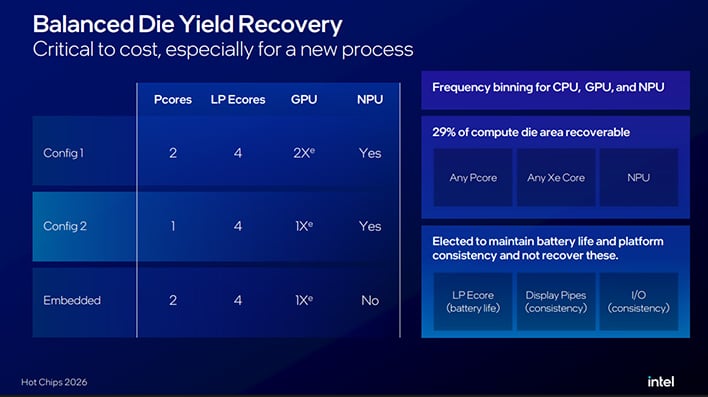

While packaging adjustments yielded platform savings, Intel also relied on UCIe and modular IP layouts to maximize wafer yields on its Intel 18A process node. The company implemented a flexible binning strategy that it says recovers up to 29% of compute die area affected by localized defects.
As part of this, flawed P-cores and/or Xe graphics tiles can be disabled, allowing affected dies to be binned down into lower SKU chips (such as 1 P-cores + 4 LP E-cores or 1 Xe GPU core configurations). And to preserve platform consistency and long battery life—both of which are strengths of the MacBook Neo—Intel chose not to disable LP E-cores, NPU units, or display pipes when defects occur.
