Modder Finally Defeats Sony's Legendary 26-Year-Old PS2 Security Chip

by Aaron Leong — Thursday, September 17, 2026, 09:58 AM EDT

Sony's PlayStation 2 was the company's best selling console ever - Image: Sony

Following four intense years of dedicated reverse-engineering, one of the PlayStation 2’s final and most secure hardware components has finally been cracked open.

After 4 years of effort, I'm happy to announce that one of the final secrets of the PS2 has been broken wide open!

It's been a long process of decapping, optical dumping, and now at last a software solution.

Thank you Libby for finding the exploit from our dirty optical dumps! pic.twitter.com/VrsCH8I35C
— DiscoStarslayer (@DiscoStarslayer) September 13, 2026

A hardware modder known as DiscoStarslayer (with crucial help from a collaborator called Libby) has successfully dumped the full internal firmware of Sony’s CXP102064 security controller, a.k.a. the MechaCon. Embedded within the launch-era PS2 Fat consoles released in 1999 and 2000, the microcontroller served as the gatekeeper for the world's best-selling video game console, managing the disc drive mechanics, regional playback locking, MagicGate memory card authentication, and encrypted KELF file execution.

For 26 years, the inner workings of the early MechaCon remained a black box to the preservation community. While later PS2 revisions had their security mechanisms bypassed via software exploits, the original launch-model chip has thus far resisted extraction. Bypassing it would require a blend of physical chemistry, high-powered optics, and clever exploit development.

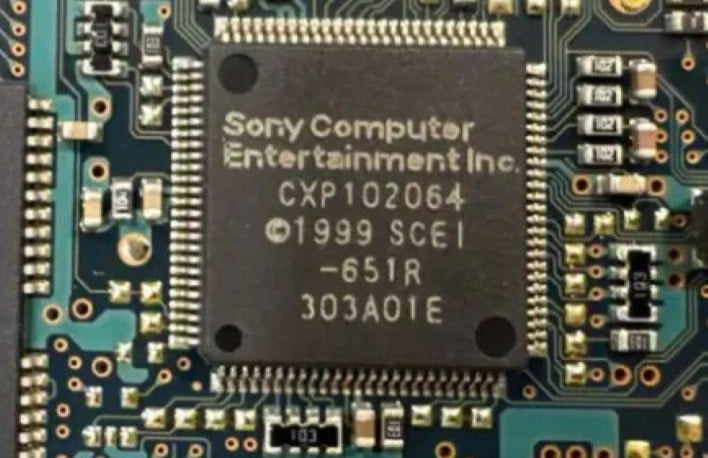

The OG MechaCon chip - Image: DiscoStarslayer via X

To peer inside the CXP102064, DiscoStarslayer had to first perform a delicate chemical decapping process, dissolving MechaCon's epoxy resin outer with concentrated acid to expose the silicon die. DiscoStarslayer then created a "dirty" optical dump utilizing (we assume) microscopic optical imaging, which is essentially mapping the physical layout of the transistors and data paths by hand and camera.

With the visual map, Libby identified a subtle software exploit hidden within the chip that allowed DiscoStarslayer to bypass read-protection routines and trigger an exact, clean dump of the internal ROM directly over software, and thus saving the need to reconstruct every single bit from photo analysis alone.

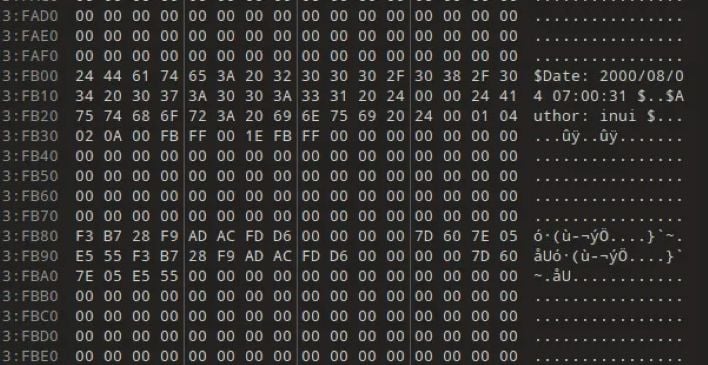

26 years later, the mighty MechaCon has been defeated - Image: DiscoStarslayer via X

Big picture-wise, this crack is a massive boost to video game preservation, hardware repair, and system-level emulation. Historically, emulators have had to high-level approximate how the MechaCon communicates with the rest of the PlayStation 2 hardware. Access to the raw firmware now enables cycle-exact, low-level emulation of the console's full security pipeline and optical subsystems, ensuring that early PS2 software can be preserved and run with absolute historical accuracy.

Another door that this opens is potentially for hardware maintenance. As original laser assemblies and optical drives degrade with age, understanding the precise communications between the MechaCon and the drive DSP makes it possible to design custom replacement modchips or alternative hardware drive emulators. Furthermore, because modified versions of this MechaCon chip were deployed in arcade hardware derived from PS2 architecture, e.g. Namco System 246 and System 256, and Konami Python 1, archivists can now better preserve and run legacy arcade titles to validate encrypted game data.
